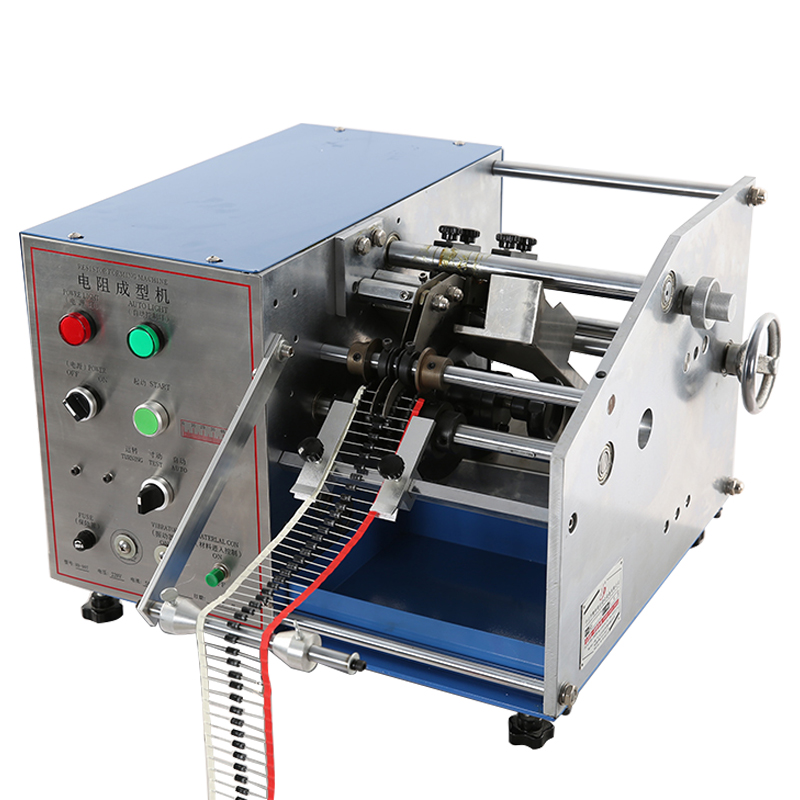

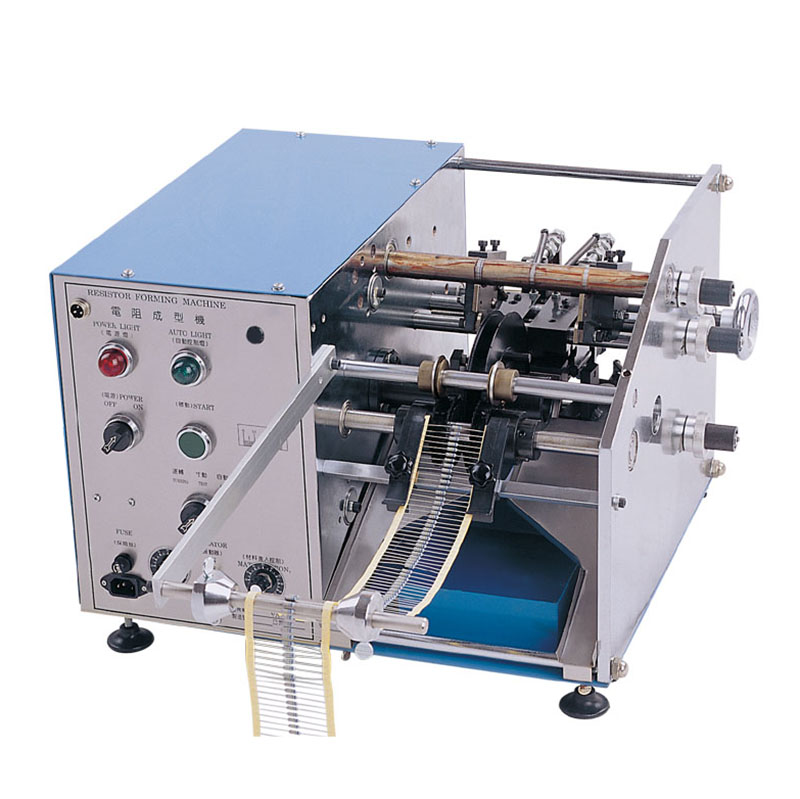

Resistance forming machine TY-101MBK
Top Taped Resistance Diode Lead Cutting Machine Axial Component Forming Machine
Product details
| Efficiency | 3600-4500 pcs/h |
| Power | 110/220 AC 60Hz/50Hz |
| Parameters | molding machine is divided into: F,F - K type |
| Characteristics | according to customer request size custom-made mold |
| Applicable | axial components such as resistors, diodes molding, cut the foot |
| The characteristics of | Motor, electrical appliances, steel are imported or domestic well-know |
Equipment use：
Straight double K forming and cutting feet for axial components such as tape resistors/diodes
Equipment introduction：
1. Full mechanical structure of gear, cam, sheave and dial combination;
2. The combination of the rolling gear and the circular knife combines the material feeding and the paper tape cutting. After the second cutting, the components are sequentially fed into the mold structure by the indexing plate to complete the horizontal bending and double K forming and returning materials;
3, motor drive, fixed speed;
4, with automatic and inching options;
5. The span and the length of the foot are adjustable, and the height of the frame is fixed;
Equipment configuration and parameters：
Tool material: Japan SKD11
Sheet metal process: high temperature powder / surface anode / hard chrome
Electric: Omron / Delixi
Motor power: 120W
Power source: 220VAC/50HZ
Dimensions: L580xW480xH450mm
Weight: 90Kg
Processingefficiency:6600pcs/H
TYtech automation can also provide reflow oven, wave soldering machine, pick and place machine, AOI/SPI, solder paste printer, smt handling machine, smt peripheral equipment, smt spare parts as well.
FAQ:
Q.What is your MOQ requirement for the machine?
A. 1 set moq requirement for the machine.
Q. This is the first i use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine.
Q: If the machine has any problem after we receive it, how can we do?
A: Our engineer will help to solve it first, and free parts send to you in machine warranty period.
Q: Do you provide any warranty for the machine?
A: Yes 1 year warranty will be provided for the machine.
Q: How can i place order with you?
A: You can reach us by email, whatsapp, wechat and confirmt he final price, shipping method and payment term, then we will send you a proforma invoice with our bank details.
